Centralized energy monitoring system in woodworking enterprise.

Client

Kokpārstrāde 98

Project date

03. September, 2020

Centralised electricity measurement tracking and monitoring system.

Tasks

  • Initially combine in one system two substations with 36 meters
  • Receive current information from switchgears about current A, voltage V and power W
  • Record data for further data processing

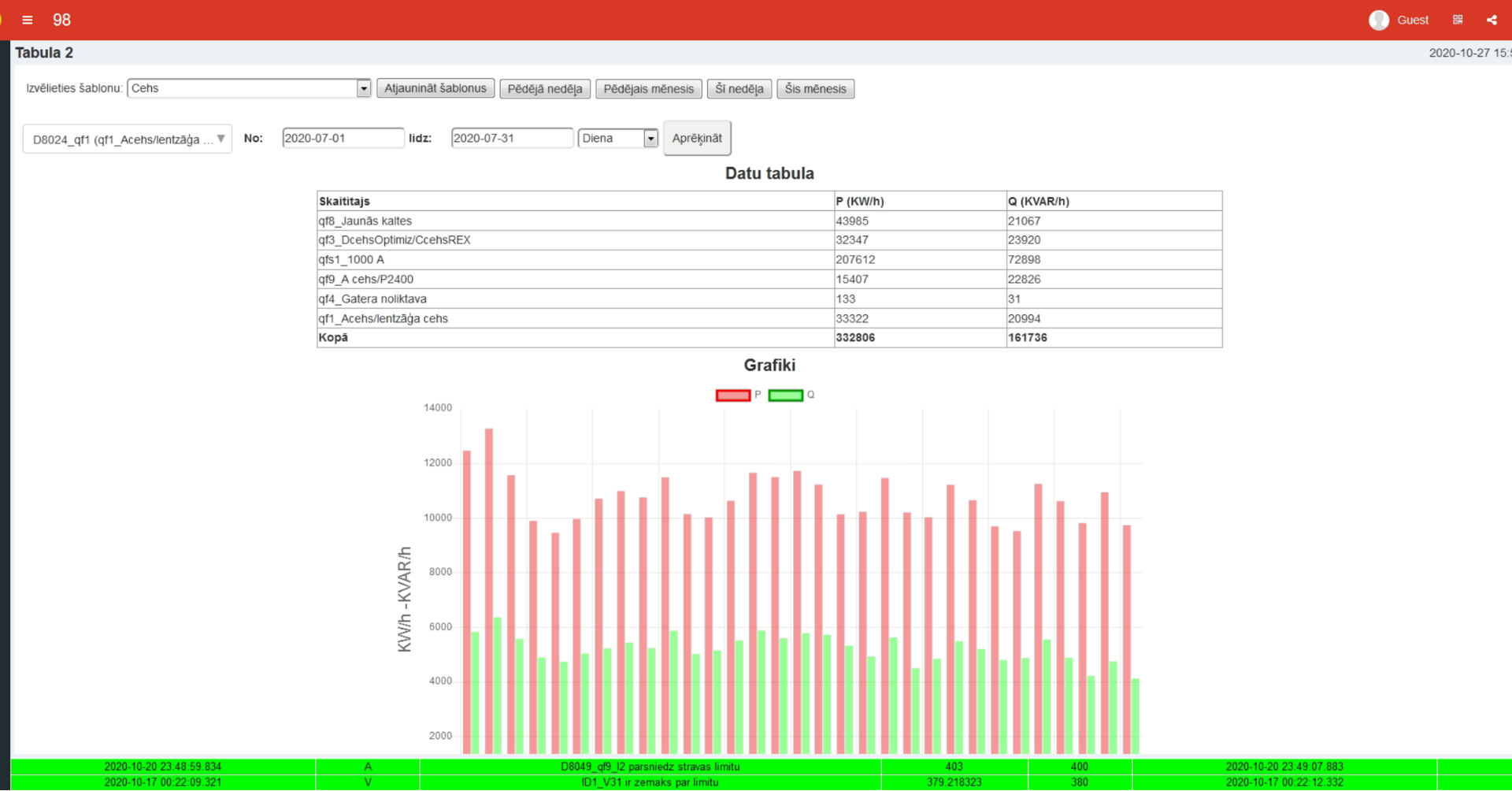

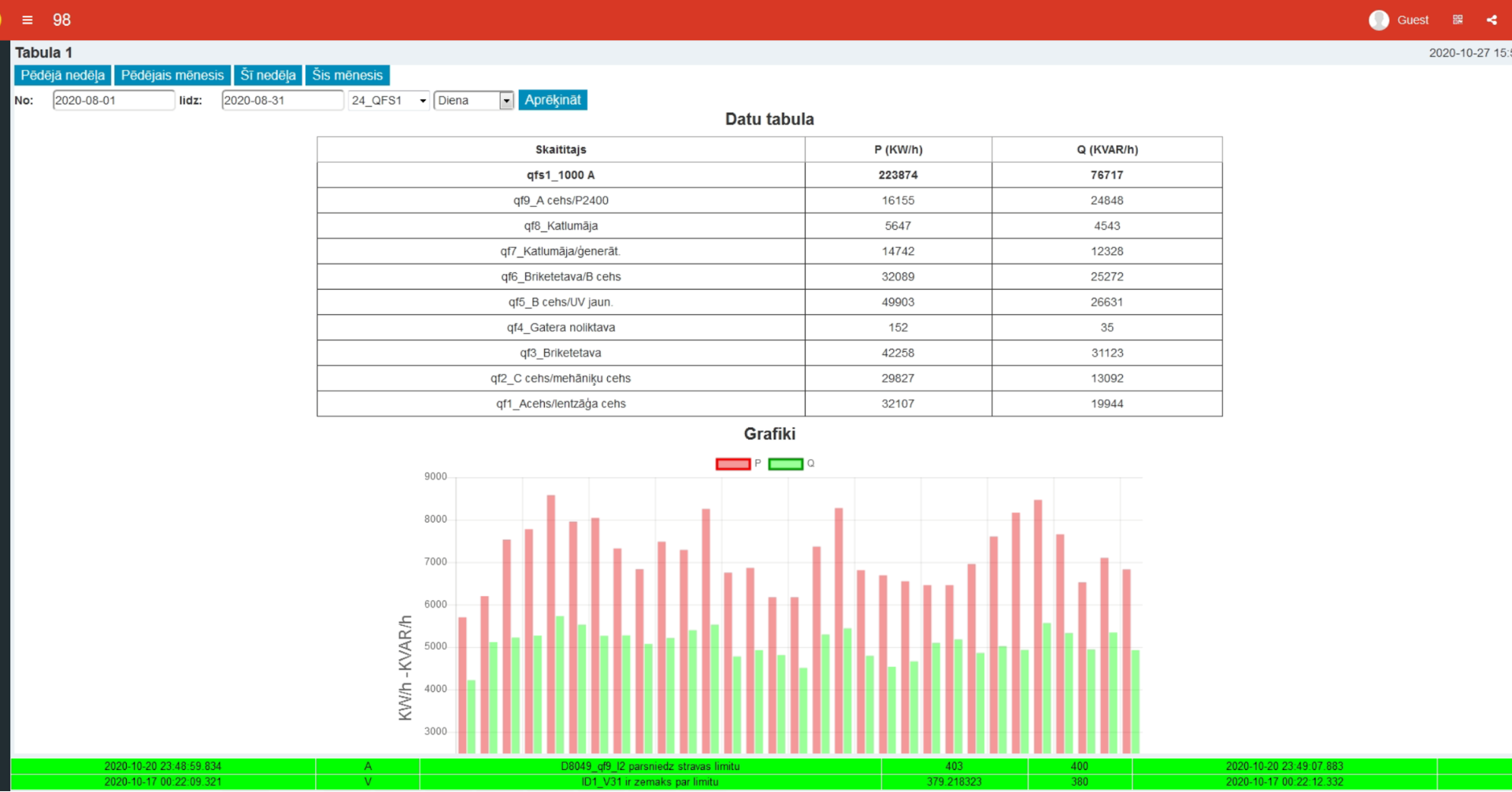

  • Develop the generation of reports that meet customer requirements

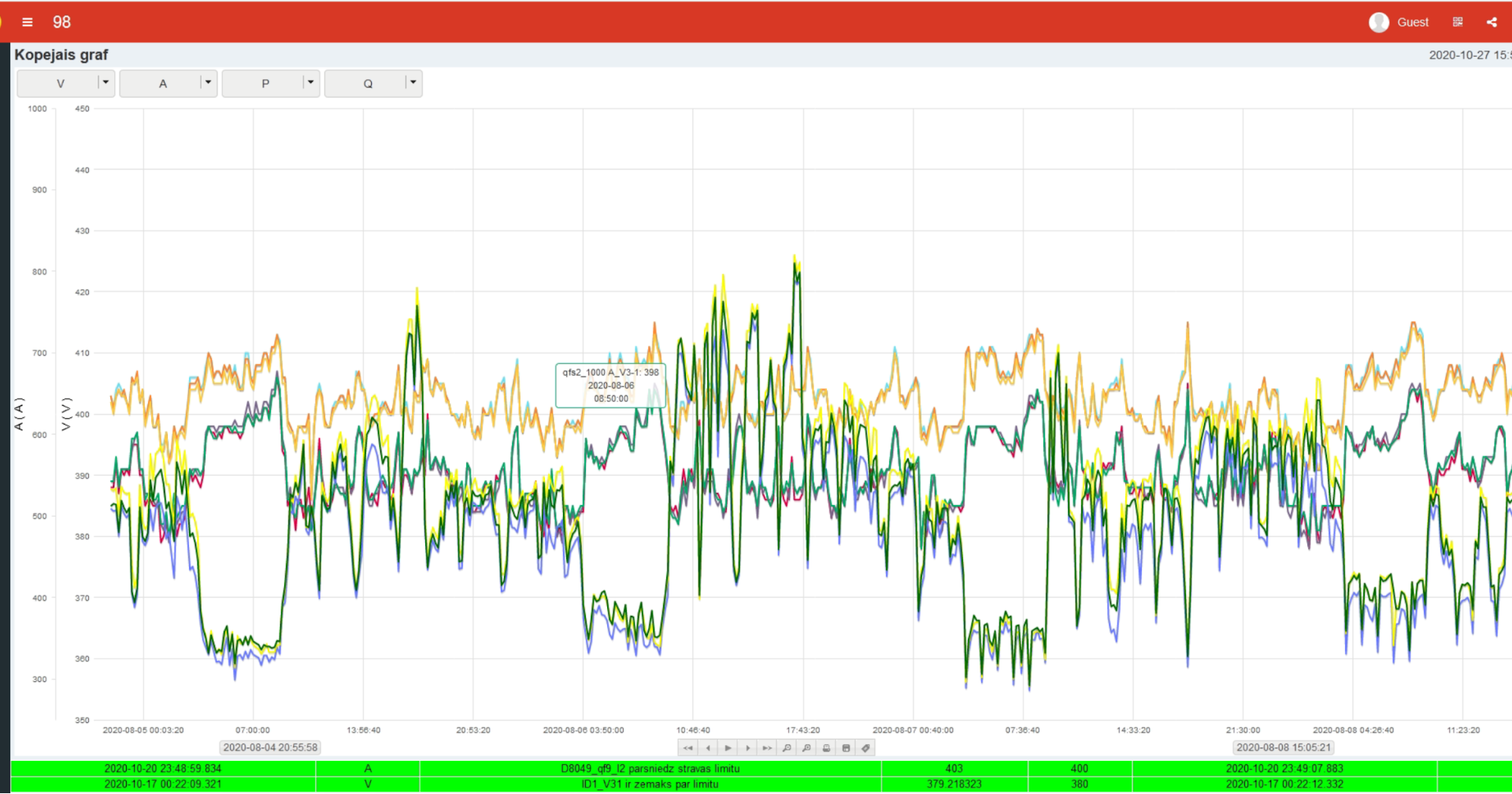

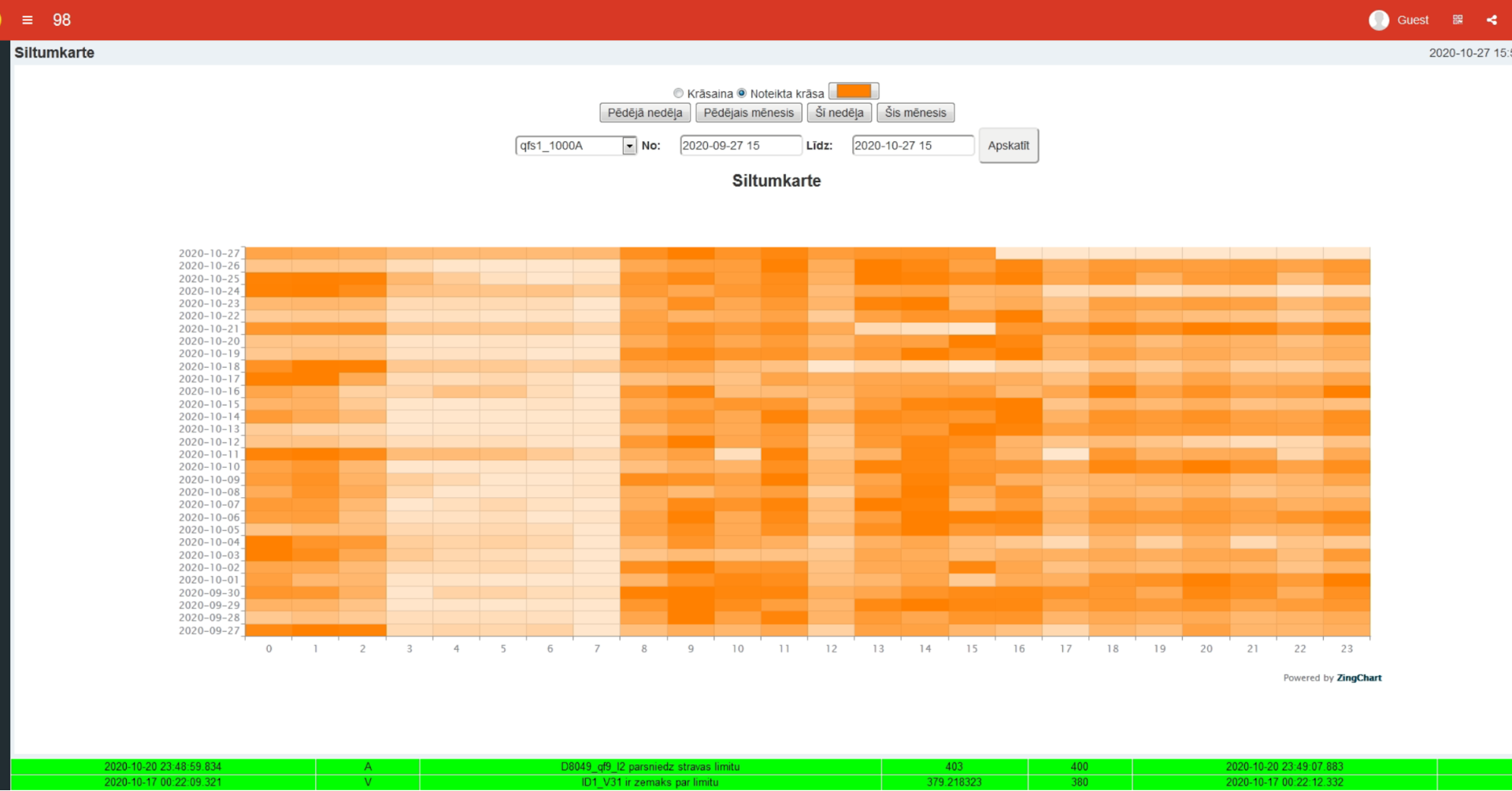

  • Prepare a graphical analysis environment that meets the requirements of an energetic

Solutions

  • Develop a specialized and customized Energy Monitoring System based on ECAVA IGX
  • Using Modbus RTU / TCP, read data from switchgear circuit breakers
  • Ensure continuous data monitoring
  • Fully customized system and its operation to customer needs

Benefits

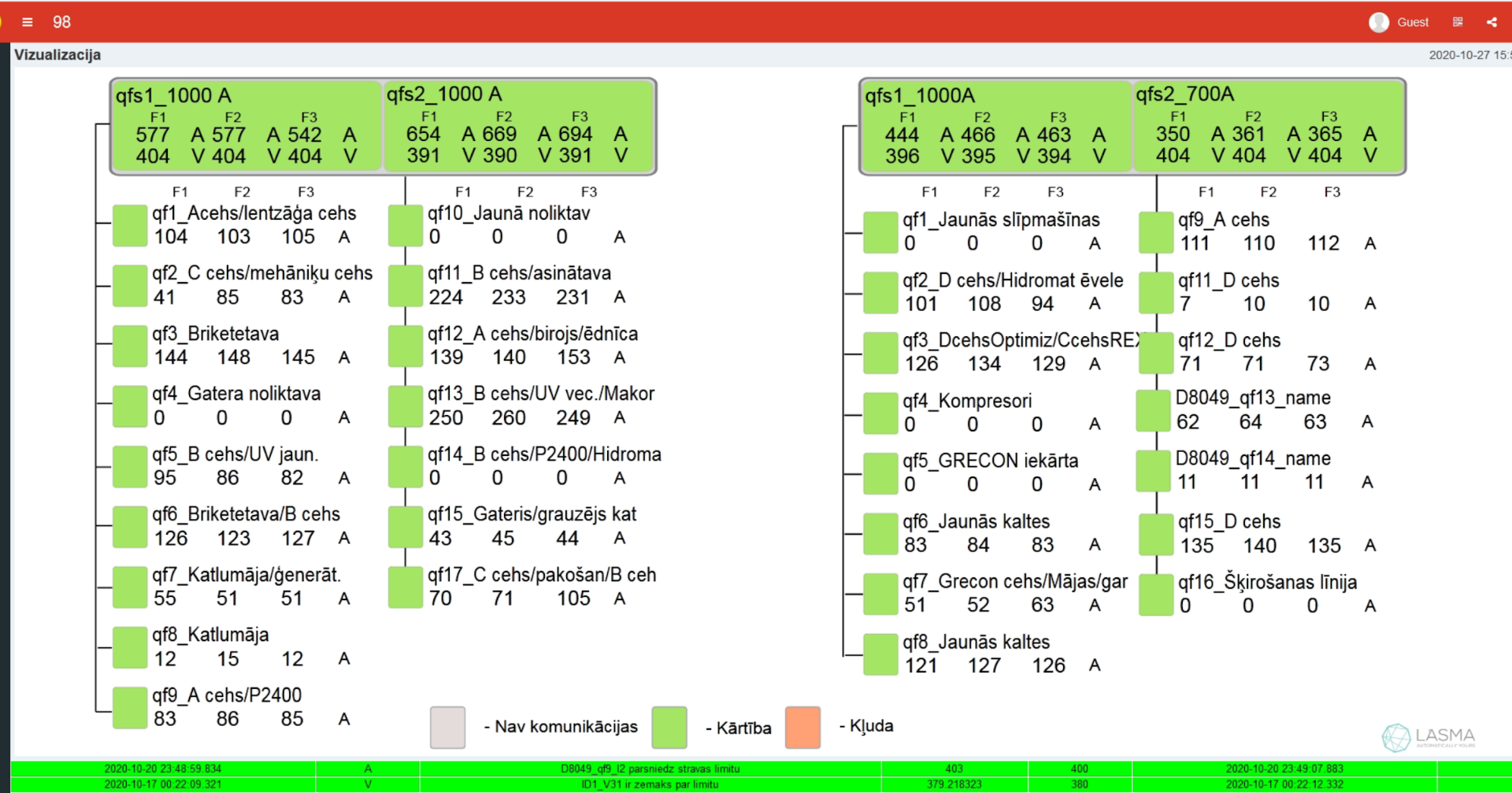

  • There is a clear and simple way to see up-to-date information about the factory’s energy supply system
  • Quick and convenient reporting on request
  • Easy detailed analysis
  • Stable operation and support of systems
  • Possibility to add additional monitoring points to the system

Testimonial

Company "Kokpārstrāde 98" LTD is the largest producer of wooden slats and decorative interior decoration materials in Latvia. The use of highly developed woodworking equipment and production equipment in the company allows us to export our products to numerous countries, where the quality of our products, fast production and delivery times and, last but not least, the ability to adapt to customer needs is highly appreciated. Our approach is continuous development and improvement of production. These include the automation of operations to achieve higher production efficiencies and set new ambitious targets.

We have been cooperating with the company ZTF Lāsma for several decades and during this time we have implemented several projects together. One of the most important is the centralized Energy Resources Monitoring System, which was installed, maintained and developed by the LĀSMA team. We highly appreciate the professional approach to the tasks assigned to the work, which allows us to be sure that they will always be performed qualitatively, operatively and in accordance with our requirements.

Kokpārstrāde 98
Alvis Kokins
