Reactive power compensation device 237.5kvar

Client

4plus

Project date

23. September, 2019

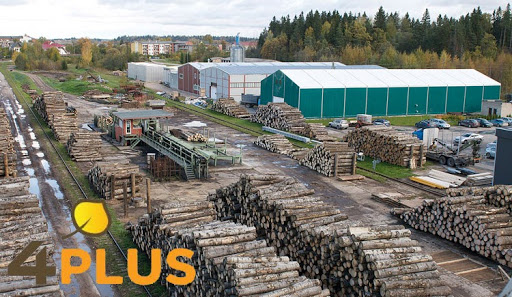

Reactive power compensation in a wood processing company

Tasks

  • Reactive power compensation
  • Compensation of total reactive energy of two inputs
  • Network analysis for selecting suitable equipment and offer preparation
  • Manufacture, installation and adjustment of reactive compensation equipment

Solutions

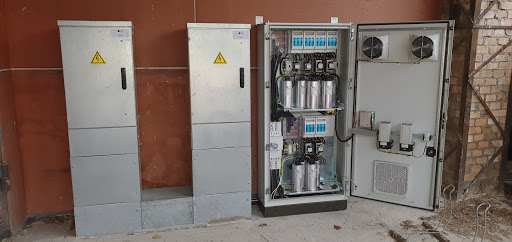

  • To manufacture 237.5 kvar reactive power compensation equipment with expansion possibilities

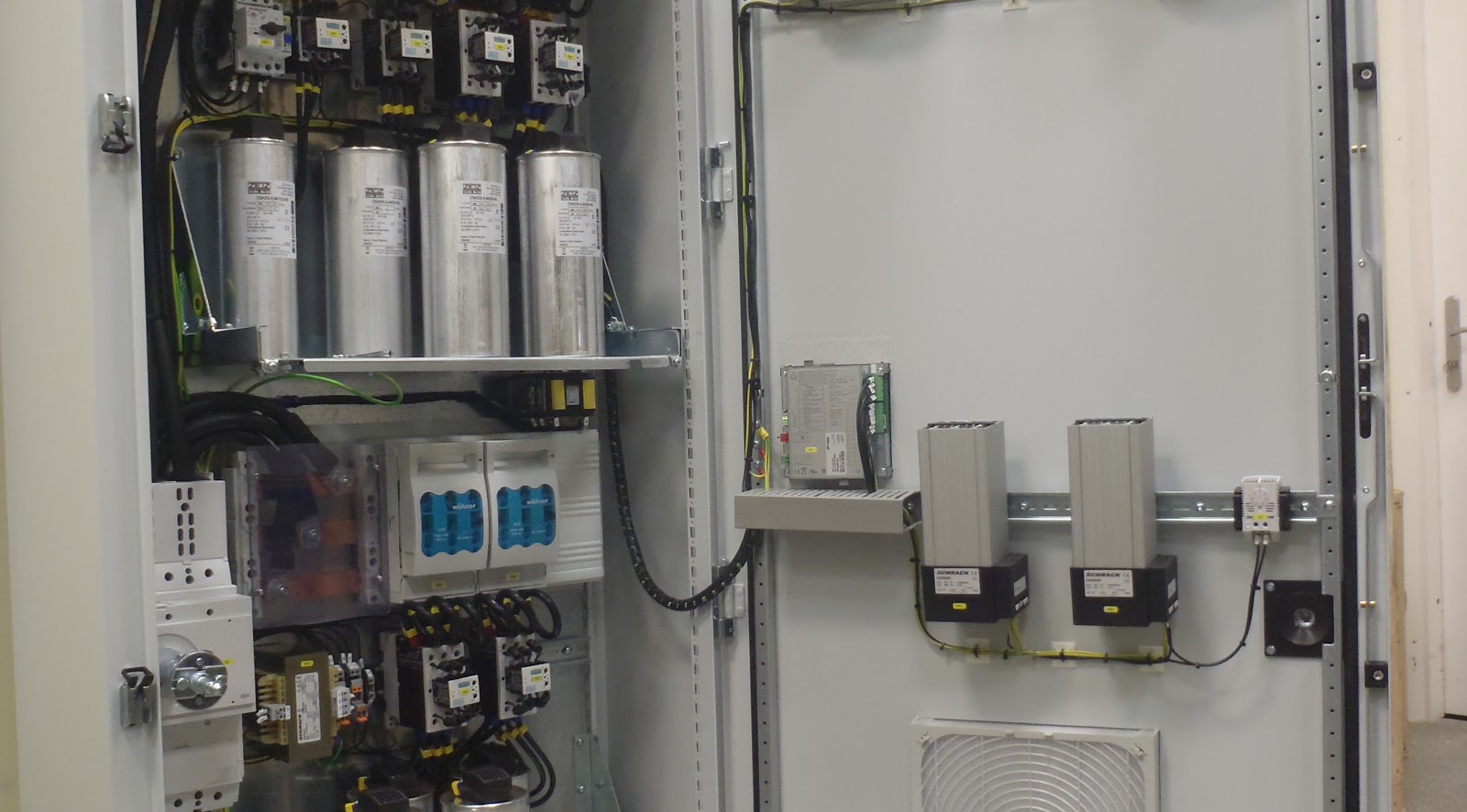

  • Taking into account the current situation in the customer’s electrical network, use ZEZ Silko standard series capacitors with 2x IN
  • Install a 6-stage RPC controller
  • The current measurement required for compensation is performed in two independent switchboards. Solution with a summator of current transformers is applied, which combines the measurement from two current transformers.

Benefits

  • Provided monitoring for 2 months to select the appropriate equipment and analyze the data
  • As a result, reactive Energy has decreased by 78%
  • The financial savings are 200 EUR / month
  • The plant will be redeemed in less than 2 years
  • Designing and manufacturing took place faster than expected
  • Payment procedure tailored to customer’s needs
